Starlink Installation in Tucson, AZ

This article features a successfully completed Starlink Installation in Tucson, AZ, where the team deployed the Starlink system at warehouse facility to serve as the primary internet connection.

For inquiries and request for a quote, call 1-844-799-0258.

Project Overview:
Starlink Business Installation in Tucson, AZ

• Location: Tucson, AZ
• Property Type: Warehouse
• Roof Type: Metal, slightly slanted
• Starlink Kit: Enterprise Kit
• Customer Preferred Mounting Option: Non-penetrating roof mount
• Recommended Mounting Solution: SataMount screw down
• Starlink Use: Primary internet connection

Our Starlink installation SMEs kick-off the processing of the service request by performing the following:

1. Installation Assessment and Planning

Our Starlink subject matter experts (SMEs) conducted an initial offsite assessment to gather the customer’s requirements for the Starlink installation using satellite imagery and customer-provided onsite photos. Following this, our team performed an onsite survey to:

• Identify the most optimal installation point for the Starlink dish by performing an obstruction test to ensure a clear and unobstructed line of sight to the sky.
• Determine appropriate mounting solution for secure and stable dish placement.
• Verify the most efficient cable path and entry point into the building with customer approval, along with the designated indoor cable termination location.
• Assess the need for longer Ethernet cable and other necessary tools and materials to achieve proper connectivity to the Starlink network.

Following the onsite survey, the SMEs sent an installation proposal for customer’s approval. Once approved and the equipment was confirmed onsite, the installation schedule was coordinated with our Starlink installers in Tucson, AZ.

2. Onsite Starlink Installation in Tucson, AZ

Our expert Starlink installation team arrived onsite to perform the following scope of work:

• Starlink dish installation using SataMount screw down with pivot mount.
• Cable routing to indoor MDF location.
• Integrate Starlink to the existing network through SD-WAN appliance or gateway.
• Perform connectivity tests and confirm with onsite point of contact.
• Document the installation with photos.

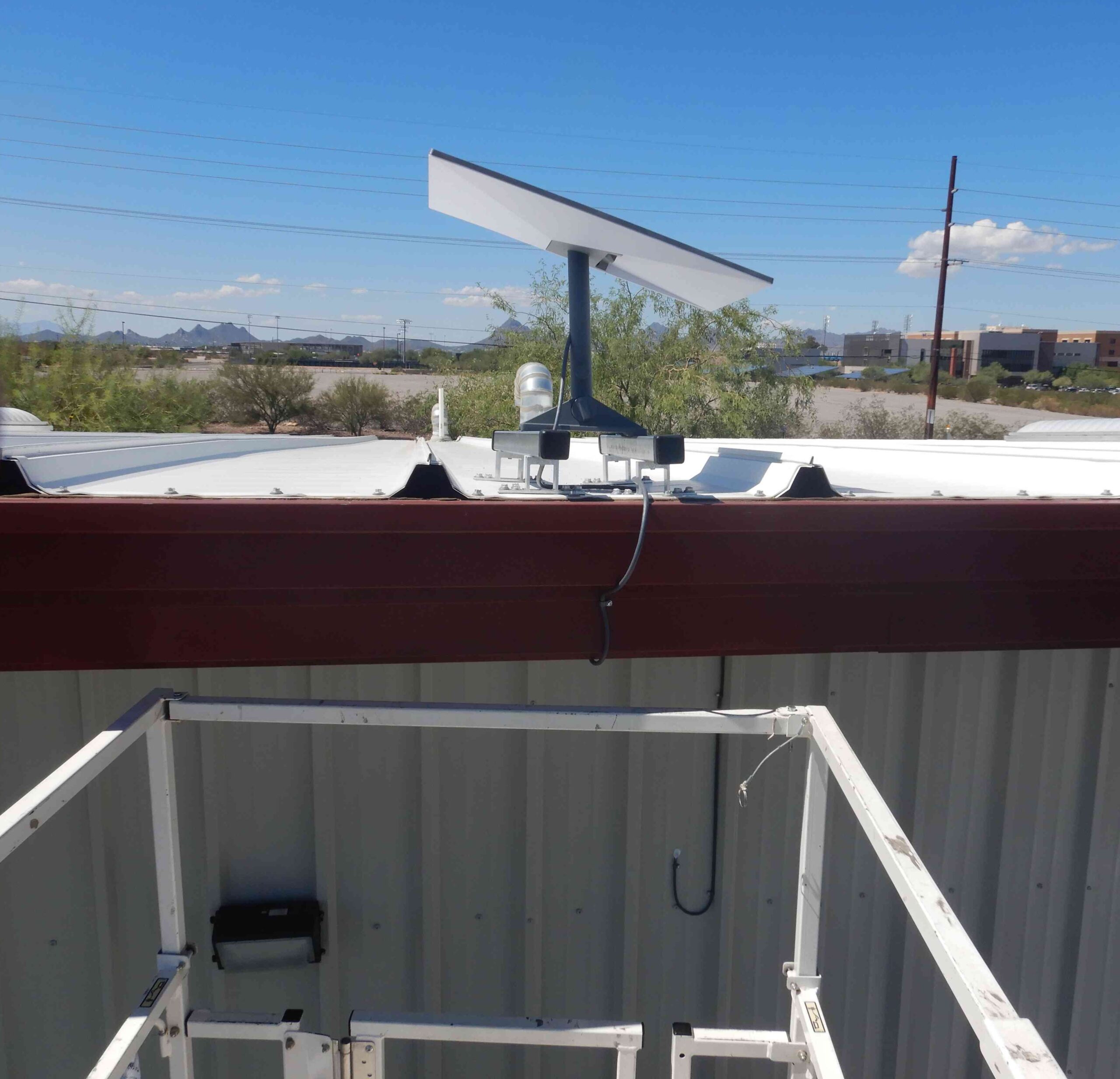

The Starlink installation in Tucson, AZ was initiated by mounting the Starlink dish on the confirmed location from the result of the obstructions test.

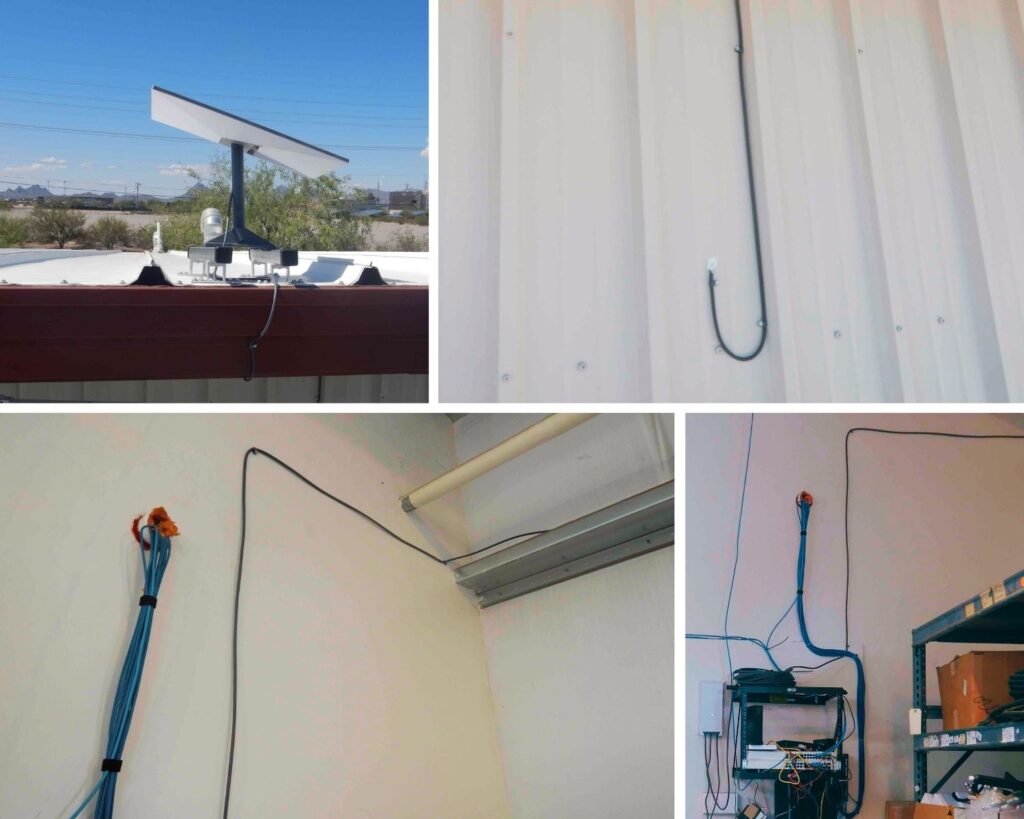

Our team run the Starlink cable from the dish, routed downward along the roof’s edge using UV-rated cable clips. The cable descent along the exterior wall and created an entry point sealed with silicon sealant to prevent water intrusion. Inside the facility, cable run into the network area, where it connects to the Starlink Power Supply Unit (PSU).

The Starlink connection is integrated into port 1 of the SD-WAN security appliance to establish primary network connectivity to the warehouse facility.

3. Starlink Performance Testing

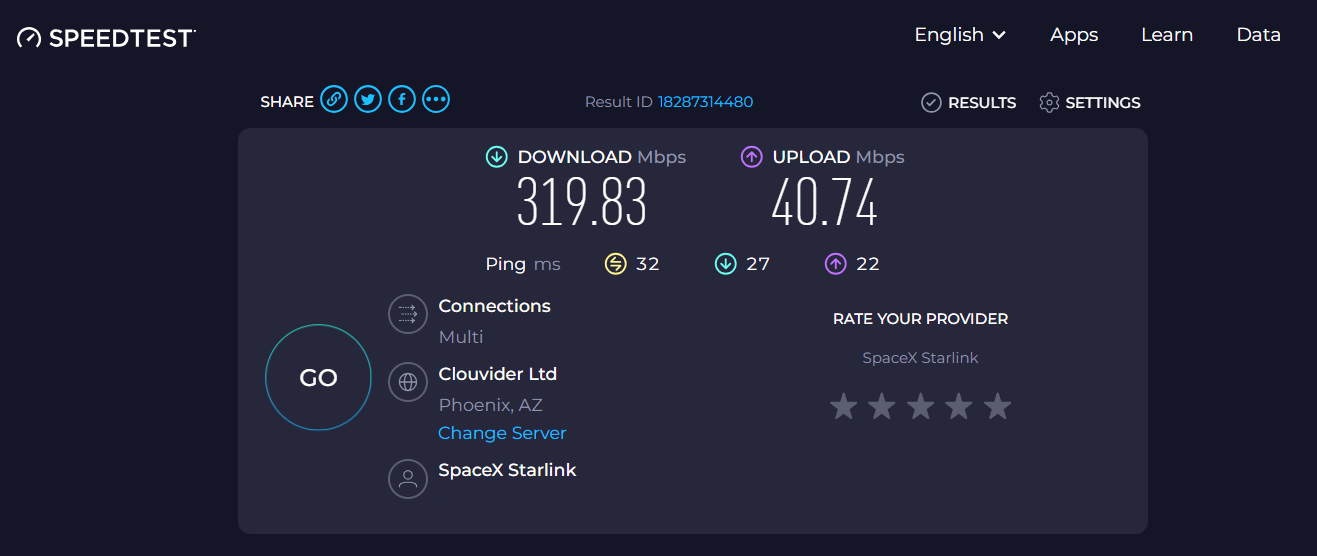

Following the equipment installation, the team performed the Starlink dish alignment to ensure clear line of sight to the satellite network. The team test the performance of the Starlink through speed test as shown in the images below.

Performance Evaluation:

• 1. Download Performance: An upload of 319.83 Mbps demonstrates enterprise-grade bandwidth delivery, aligning with expected Starlink Enterprise performance levels, which typically range from 150–350 Mbps depending on network load and sky visibility. Bandwidth is sufficient for high-demand environments such as multi-user offices, surveillance systems or site-to-site VPNs.

• Upload Performance: An upload speed of 40.74 Mbps exceeds typical Starlink Business averages (20–30 Mbps), reflecting optimized upstream capacity. Outstanding for cloud synchronization, VoIP, and remote desktop sessions.

• Latency: A 32 ms ping is exceptional for a satellite link, confirming low orbital latency from the LEO constellation. Supports latency-sensitive applications such as live streaming, video conferencing and remote management.

Key Takeaways

This Starlink Enterprise installation in Tucson, AZ exhibits high-tier network performance suitable for mission-critical operations and enterprise environments.

Key Observations:

• Performance metrics exceed typical Starlink averages.
• Latency is consistently low and stable.
• Bandwidth supports multi-user workloads and data-intensive applications.
• Starlink System is properly configured with optimal signal alignment and minimal obstruction.
